D16x85mm Nylon Sleeve for Chemical Anchor Installation in Hollow Slabs and Bricks

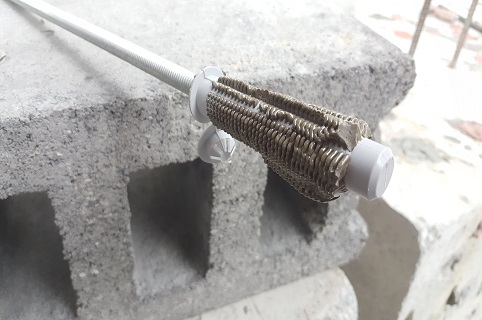

The nylon sleeve is designed to hold anchor bolts and chemical anchors in perforated or hollow substrates, providing a secure non-expansion fixing. Made of lightweight plastic with a lattice structure, it effectively contains the chemical resin during installation. When setting an anchor stud in hollow substrates, the nylon sleeve stores the resin and ensures a reliable anchoring point. Its mesh design allows the resin to flow through into the voids of the substrate, and once cured, the resin distributes the load of the anchor stud safely and effectively. This design prevents expansion or cracking, even under heavy loads.

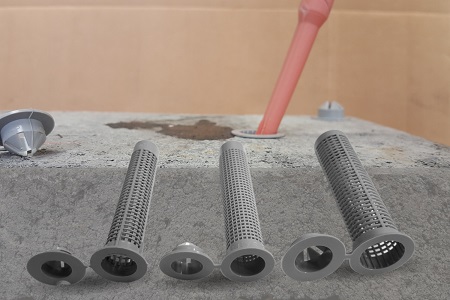

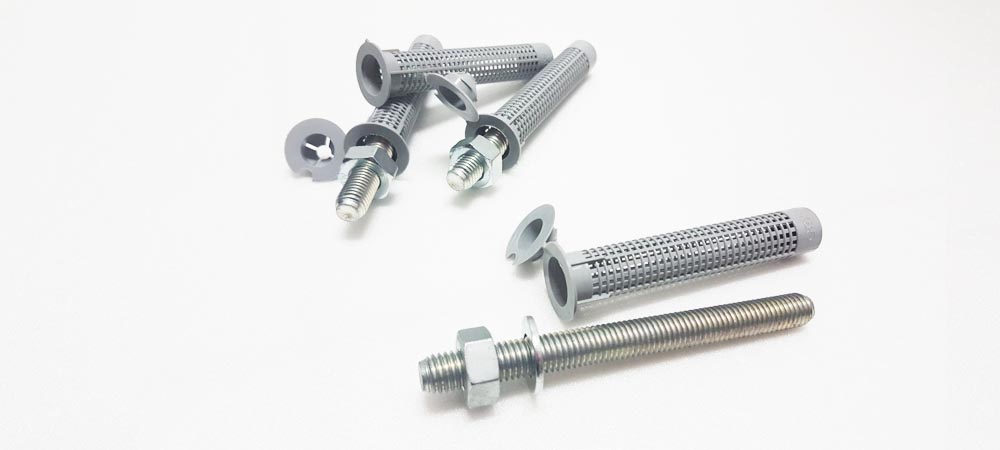

Available Size
M15 x 85mm for M8 - M10 rods.
M16 x 85mm for M8 - M12 rods.
M20 x 85mm for M12 - M14 rods.
Application
- Suitable for medium load
- Various hollow materials, such as Honeycomb brick, perforated sand lime brick, hollow blocks
- For fastening many profiled materials, such as anchor rods, perforated sleeves, reinforcing rods.
Specification
- Item: #819 M16x85
- Sleeve Size: 16mm Diameter / 85mm Length
- Suitable for M8-M12 Threaded Rod and Studs
- Complete with stud alignment collar
