GU-600 380ML Epoxy Acrylate, Construction Adhesive Resin, Anchoring Mortar
2-component injection resin based on a epoxy acrylate for anchoring bolt and rebar. It's medium-high loads and high resistance to chemical attack. It is no shrinkage, product with high bond strength and fast strength gain. Coaxial completely mixed to simultaneously dispensed from through a static mixing nozzle. Suitable for anchoring dynamically stressed structures, building components.
Epoxy acrylate adhesive anchor in concrete
For anchoring structural steel connections at specific environment of acid and alkali. Our GU-600 Epoxy acrylate with styrene is a good choice. All of our injectable cartridge mortar tested in European lab to approval the performance on structural connections with post-installed rebar and threaded anchor.
Quality Tested By EOTA Approval Lab In Germany
All GOOD USE chemical anchor products are qualified by EAD regulations. If you want to check test report, kindly check with us!
EAD - European Assessment Document for bonded fastener using in concrete and published by EOTA. All our chemical anchor are tested in Germany lab with approval performance.

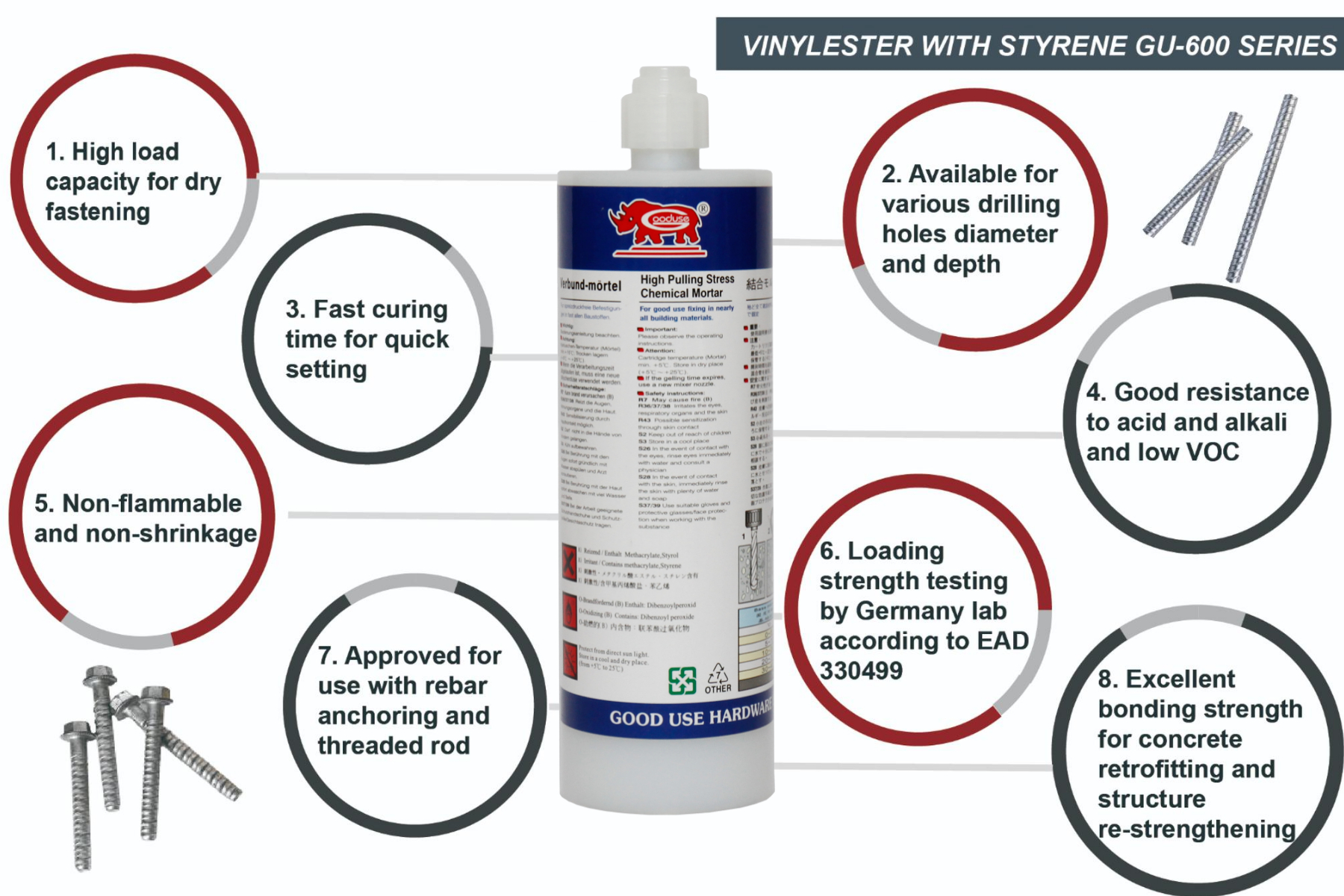

Product Features:
- Medium heavy load.
- Good resistance to acid and alkali.
- Versatile range of embedment depths.
- Non-flammable, suitable for dry fastening.
- 380ml is coaxial cartridge, use 380ml manual gun.
- Cartridge reusable by simply exchanging static mixer.
Application:
- Consoles、Safety barriers、Structural Steel, curtain wall、Signs and signal installations holding down fixtures such as machinery, pumps, motors, fabrication and suspension work.
Installation:
7 Steps to use chemical anchoring system
1. Drill correct hole size and depth on concrete/ brick/ stone/ masonry.
2. Blow out dust.
3. Clean the hole with brush.
4. Blow out remaining dust.
5. Inject adhesive from the bottom.
6. Insert stud/ bolt/ anchor/ rebar/ threaded rods into the hole.
7. Wait for few minutes. The steel and concrete will bond very firmly.
Technical Data:
Certification:
Packing & Shipping:
- Standard Packing:1 tube + 1 mixer per set, 20 sets per box.
- Shipments can be arranged by sea, air, courier express.
- Courier express includes GDA, DHL, FedEx, TNT, UPS, EMS, SF, etc.
