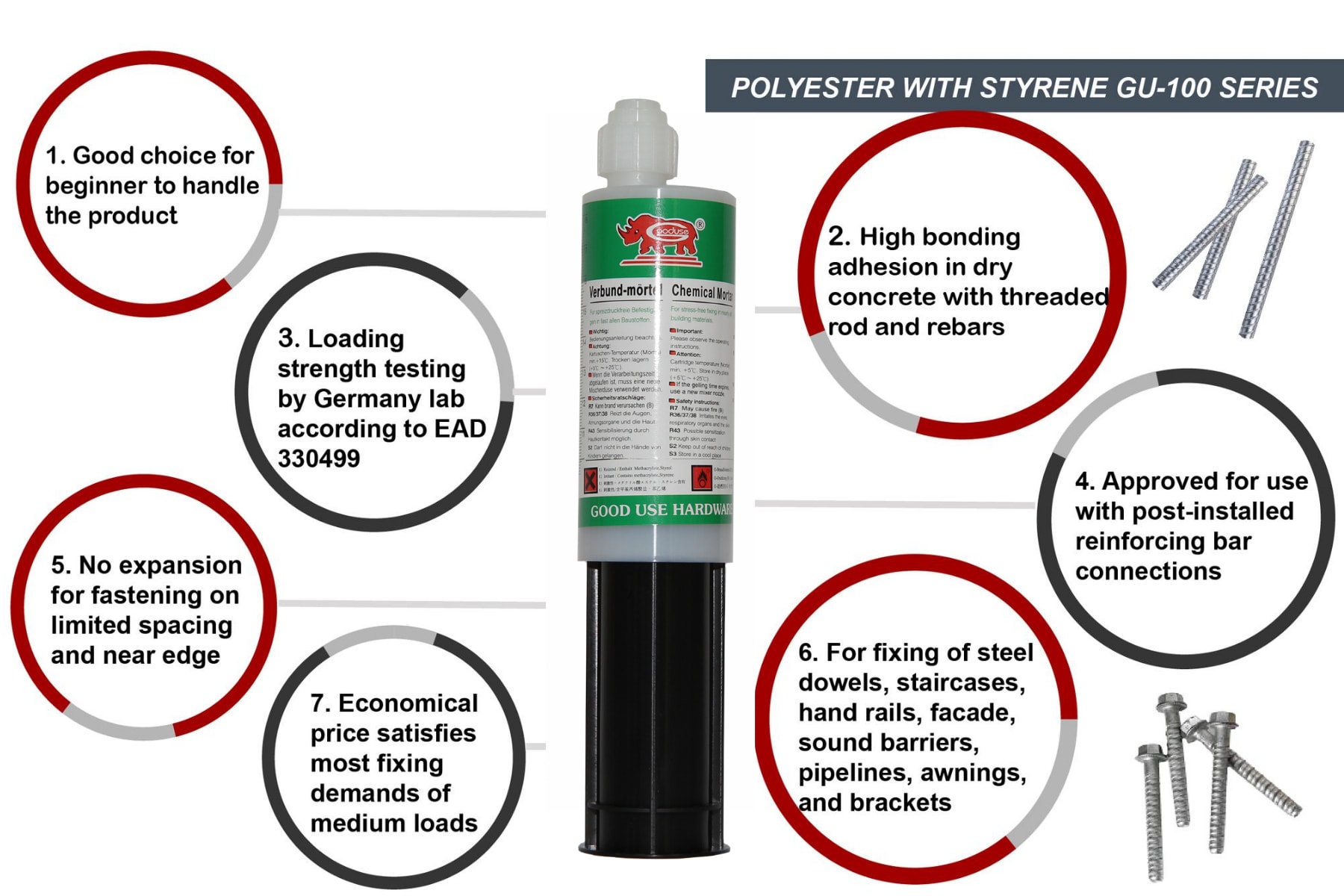

Chemical Injection Anchor Glue Stud Bolt Fasteners
Polyester is common chemical anchor bolt injection system. Compose of 2-component injectable mortar which is easy setting with special caulking gun to achieve high bonding adhesion. The comparable price and performance satisfy general fixings to heavy construction. It is good choice for beginner to handle the product.
Polyester chemical anchor for hollow brick fixiing
We offer diverse volume to meet different consumption in projects. By pressing caulking tool to mix two parts through mixer and get hardened.
235ml side by side small volume easy use for small area. There are 150ml, 345ml, 360ml and 380ml available for diverse market preference. All volume cartridge for fixings in non-cracked concrete, masonry, brick, stone, perforated brick.
Quality Tested By EOTA Approval Lab In Germany
All GOOD USE chemical anchor products are qualified by EAD regulations. If you want to check test report, kindly check with us!
EAD - European Assessment Document for bonded fastener using in concrete and published by EOTA. All our chemical anchor are tested in Germany lab with approval performance.
Product Features:
- No expansion effect, allowing fixing close to the edges.
- Low levels of volatile organic compounds (VOC’s) according to LEED test.
- Cost-efficient and long durability.
- Crack and gap filling repairs in concrete vertical or horizontal.
- Medium loads for general anchoring purpose.
- Private label or customized design by demands.
Application:
- Steel dowels, staircases, hand rails, facade, sound barriers, pipelines, awnings, brackets, post-installation rebar connections.
- For medium loading, threaded rod anchoring, dry concrete, uncracked base.
Installation:
7 Steps to use chemical anchoring system1. Drill correct hole size and depth on concrete/ brick/ stone/ masonry.
2. Blow out dust.
3. Clean the hole with brush.
4. Blow out remaining dust.
5. Inject adhesive from the bottom.
6. Insert stud/ bolt/ anchor/ rebar/ threaded rods into the hole.
7. Wait for few minutes. The steel and concrete will bond very firmly.
Technical Data:
Certification:
Packing & Shipping:
- Standard Packing:1 tube + 1 mixer per set, 20 sets per box.
- Shipments can be arranged by sea, air, courier express.
- Courier express includes GDA, DHL, FedEx, TNT, UPS, EMS, SF, etc.
Polyester chemical anchor for hollow brick fixiing
7 Steps to use chemical anchoring system
